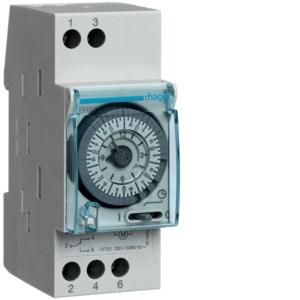

Hager EH271 with power reserve 1W/16A 2PLE weekly timer

In stock

SKU: 763915

Price on request

€110.98

€0

Overview

Electromechanical timer with power reserve, weekly timer 1W 16A, 2 PLE. Weekly timer, electromechanical for time control of operating resources, mounting on top hat rail, switching steps at 3.5 hour intervals with power reserve through captive switch tabs.

Property	Value
Width in division units:	2
Number of channels:	1
Protection class (IP):	IP20
24 h program:	no
Manual operation:	yes
Supply voltage:	230 V
Mounting type:	DIN rail
Type of supply voltage:	AC
Frequency of supply voltage:	50 to 60 Hz
Shortest switching time channel 1:	210 min
Contact design:	Changeover contact
Power reserve in hours:	200
Accuracy per day:	1 s
Mains synchronous:	no
Power reserve in years:	0.022
Weekly program:	yes
Shortest switching time channel 2:	210 min
Nominal switching current at 250 V AC:	16 A
Annual program:	no
Quartz-controlled:	yes
Automatic summer/winter time changeover:	no
Height:	90 mm
Width:	36 mm
Depth:	58 mm
Program disc division 1:	120 min
Program disc division 2:	120 min
Switching preselection:	no
Potential-free switching contact:	yes
60 min program:	no
