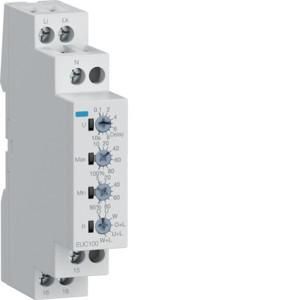

Hager EUC100 dir/indir 1P+N1 changeover control relay

In stock
SKU: 923188
€120.15
Into a basketIn the basketGo

Overview

Control relay for direct and indirect current monitoring, 1P+N, 1 changeover contact. Control and monitoring relay for undercurrent and overcurrent monitoring and current range monitoring (window function) in single-phase networks (L+N), with the option of storing the state (latch function - locking after tripping). Function, switching threshold values, hysteresis and tripping delay can be adjusted using 4 potentiometers. 4 control LEDs provide information on the state of the device. Current measurement can be carried out directly (up to 10 A AC) or indirectly via current transformers. Mounting on a top hat rail (DIN rail).

Property Value
Number of contacts as changeover contact: 1
Max. permissible release delay time: 10 s
Type of voltage for actuation: AC
Min. adjustable release delay time: 0.1 s
Design of the electrical connection: screw connection
Width: 17.5 mm
Height: 87 mm
Depth: 65 mm
With removable terminals: no
1-phase undercurrent possible: yes
3-phase undercurrent possible: no
1-phase overcurrent possible: yes
3-phase overcurrent possible: no
1-phase window possible: yes
3-phase window possible: no
Contains DC undercurrent function: no
Contains DC overcurrent function: no
DC window function: no
Current measuring range: 0.5 to 10 A
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
External current transformer: yes

Characteristics

HABEUC100 dir/indir 1P+N1 changeover
ManufacturerHAGER
HANEUC100
GTIN3250615600523
Number of contacts as changeover1
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz230V
Width17.5 mm
Height87 mm
With removable clampsNo
Voltage type for actuationAC
Depth65 mm
