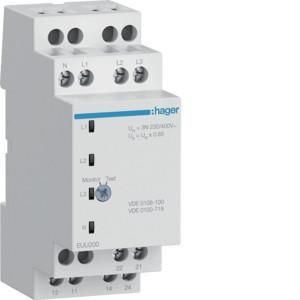

Hager EUU2001P+N/3P+N 2 changeover control relay

In stock

SKU: 923190

Price on request

€118.94

€0

Overview

Undervoltage control relay 1P+N/3P+N 2 changeover contacts. Control and monitoring relay for undervoltage in single and three-phase networks (L+N, 3L+N). Suitable for systems with emergency power supply and safety lighting in accordance with DIN0108-0100 and DIN0100-718. Fixed switching threshold at 0.85 x Un and fixed hysteresis of 5%. With test function for simulating undervoltage triggering. Mounting on a top hat rail (DIN rail), with LED signaling.

Property	Value
Type of voltage for actuation:	AC
Response value voltage:	161 V
Number of contacts as changeover contacts:	2
Design of the electrical connection:	Screw connection
Min. adjustable release delay time:	0.2 s
Max. permissible release delay time:	0.2 s
Width:	35 mm
Height:	87 mm
Depth:	65 mm
Voltage measuring range 1:	161 to 299 V
Rated control supply voltage Us at AC 50 Hz:	230 to 400 V
With removable terminals:	no
1-phase undervoltage possible:	yes
3-phase undervoltage possible:	yes
1-phase overvoltage possible:	no
3-phase overvoltage possible:	no
1-phase window possible:	no
3-phase window possible:	no
Contains DC undervoltage function:	no
Contains DC overvoltage function:	no
Contains DC voltage window function:	no
Type of voltage of the measuring range:	AC
Rated control supply voltage Us at AC 60 Hz:	230 to 400 V
