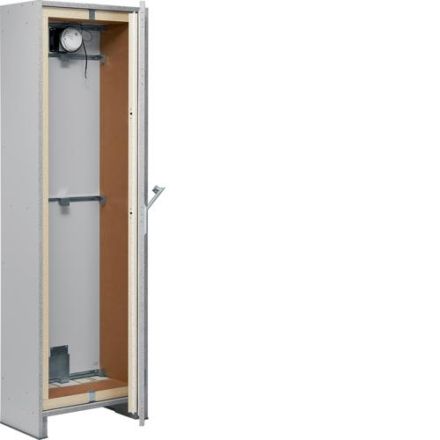

Fire protection cabinet, universal, 898 x 398 x 349 mm, 90 minutes. Electrical fire protection wall cabinet F90 for mounting on the wall to secure escape and rescue routes (fire load insulation), prepared for setting up a low-voltage distribution system up to 630A. Suitable for maintaining the functionality of safety systems in the event of a fire for over 90 minutes. The housing is made of non-flammable building material of class A2 - s1, d0, IP44, protection class II, color similar to RAL7035 and cable entries at the top/bottom. General building inspection approvals (DIBt): Z-86.1-82. Wall cabinet consisting of empty housing, fastening straps and fastening material, cable cooling attachment with insulation material. One or two doors that can be fitted into the body with a door stop that can be changed to the right or left, opening angle 180°. Door with swivel lever, door lock via push rod with 2-point locking and with DIN half cylinder double bit, replaceable, door hinges made of stainless steel. Rear wall with active ventilation system 230V AC cold smoke-tight, switches off automatically in the event of fire via smoke detector and automatically foaming fire protection seal (all around). Notes: A suitable cable cooling attachment is absolutely necessary. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
