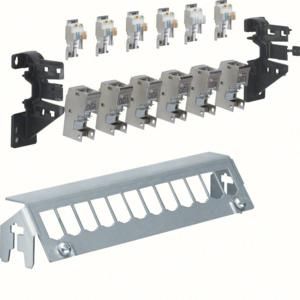

Patch panel 12-way, with 6xRJ45 modules and holders, for DIN rails or screwed. Patch panel with 12 slots, for installation in housings with universal holders on DIN rails, support rails and mounting plates. Installation of up to 12 independent modules for installation cutout 21.55 x 14.85 mm. Patch panel made of galvanized sheet steel with insulated plastic carrier for locking on top hat rail, screwing on mounting plates or mounting rails in distribution cabinets, enclosed are 6 fully shielded modules with metal housing made of die-cast zinc, nickel-plated surfaces, individually shielded RJ45 sockets, category 6, 500 MHz link tested version for data transfer rates up to 10 GBit according to IEEE 802.3an made of die-cast zinc, refined surfaces, with individually shielded RJ45 socket, large-area shield connection with spring-loaded, captive shield connection clamp, strain relief separate from the shield connection, for connecting category 6A, 7 and 7A cables. Compliance with Category 6 12C-de-embedded according to ISO/IEC 11801:2008 Ed.2.1, EN 50173-1:2007 validated by an accredited test laboratory, PVP validated (continuous quality control) particularly with regard to transmission bandwidths by an accredited test laboratory. Compliance with the 4-connector channel link class EA / 500 MHz on all pair assignments according to ISO/IEC 11801:2008 Ed.2.1 and TIA/EIA 568B.2-10 validated by an accredited test laboratory, compliance with the permanent link class EA / 500 MHz on all pair assignments according to 2nd FPDAM 2 to ISO/IEC 11801 AMD2 (2009-04) and TIA/EIA-568-C.2 (2009-08) validated by an accredited test laboratory, for 10BaseT, Token Ring, FDDI (TP-DDI), 100BaseT, ATM 155 MBit/s, Gigabit Ethernet, 10Gigabit Ethernet, suitable for Power over Ethernet (PoE and PoE plus), potential equalization using spring contact to the application, additional connection for functional potential equalization with 2 M5 screws, directly on the patch panel, metal and plastic parts recyclable, RoHS compliant, manufacturer's certificates must be enclosed.
| Property | Value |
| Type of connector system: | other |
| Number of height units (HE): | 12 |
| Number of connector openings: | 12 |
| With sockets/couplings: | no |
| EMC version: | no |
