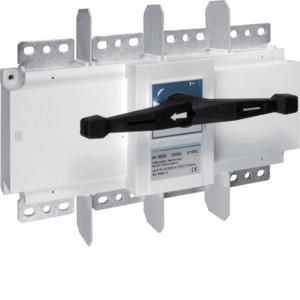

HABHA466 with disconnection indicator 4P 2500A
HANHA466
GTIN3250613113179
Connection type main circuitCable clamp
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementLong rotary handle
Conditional rated short-circuit current Iq100kA
Rated operational power at AC-23, 400 V720kW
Rated operating voltage380 to 415 V
Rated continuous current Iu2500A
Rated continuous current at AC-21, 400 V2500A
Rated continuous current at AC-23, 400 V800A
Rated short-time withstand current Icw50kA
Color of the actuatorBlack
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC415V
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Switching capacity at 400 V1645kW
Protection class (IP), frontIP00
Protection class (NEMA)Other
Voltage release optionalNo
LockableYes
