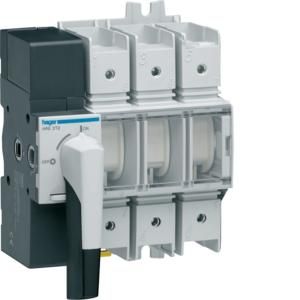

HANHAE310
GTIN3250613140304
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementShort twist grip
Conditional rated short-circuit current Iq100kA
Rated operational power at AC-23, 400 V45kW
Rated operating voltage380 to 415 V
Rated continuous current Iu100A
Rated continuous current at AC-21, 400 V100A
Rated continuous current at AC-23, 400 V100A
Rated short-time withstand current Icw4kA
Color of the actuatorGray
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC415V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Switching capacity at 400 V65kW
Protection class (IP), frontIP20
Protection class (NEMA)Other
Voltage release optionalNo
LockableYes
