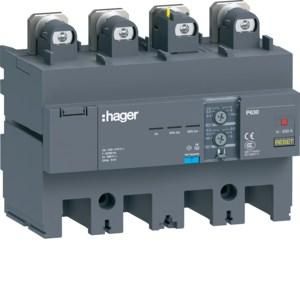

Hager HBW630H P630 4P 570A Idn adj FI-Block

Hager HBW630H P630 4P 570A Idn adj FI-Block

In stock

SKU: 703779

Price on request

€2,130.74

€0

Into a basketIn the basketGo

Overview

HBW630H P630 4P 570A Idn adj FI-Block Manufacturer Article Number: HBW630H, Manufacturer Article Name: HBW630H P630 4P 570A Idn adj

Property	Value
Max. Delay time:	3000 ms
Nominal voltage:	220 to 415 V
Delay time adjustable:	yes
Rated residual current adjustable:	yes
Nominal current:	630 A
Residual current type:	A
Number of poles:	4
Rated residual current:	0.1 to 10 A
Surge current strength:	3 kA
Frequency:	50/60 Hz
Rated insulation voltage Ui:	500 V
Rated impulse voltage strength Uimp:	6 kV
False tripping protection:	yes
With locking device:	yes
Protection class (IP):	IP40
Pollution degree:	3
Ambient temperature during operation:	-25 to 70 °C

Characteristics

HABHBW630H P630 4P 570A Idn adj

Manufacturer

HANHBW630H

GTIN3250613150969

Rated residual current0.1 to 10A

Rated insulation voltage Ui500V

Rated impulse withstand voltage Uimp6kV

False trigger protectionYes

Residual current typeA

Frequency50/60Hz

With locking deviceYes

Nominal voltage220 to 415 V

Rated current630A

Number of poles4

IP protection)IP40

Surge current strength3kA

Ambient temperature during operation-25 to 70 °C

Degree of contamination3
