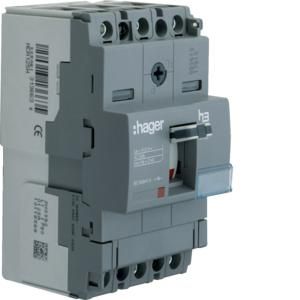

Hager HCA125H load disconnector 160 3-pole 125A

In stock
SKU: 157389
€160.92
Into a basketIn the basketGo

Overview

Load-break switch size x160 3-pole 125A. Load-break switch in accordance with IEC 60947-3 size x160, with magnetic (fixed) release for switching electrical systems and networks. Mounting on mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, triggered = middle position). The switches have a mechanical test button. The function of the circuit breakers can be expanded using various accessories. Including phase barriers.

Property Value
Number of poles: 3
Rated operating power at AC-23, 400 V: 123 kW
Rated continuous current Iu: 125 A
Max. Rated operating voltage Ue at AC: 690 V
Design as EMERGENCY STOP device: yes
Protection class (IP), front: IP40
Connection type main circuit: Screw connection
Device design: Built-in device, fixed installation technology
Design of the actuating element: Toggle
Suitable for floor mounting: yes
Motor drive integrated: no
Suitable for front mounting 4-hole: no
Version as maintenance/repair switch: yes
Voltage release optional: yes
Suitable for front mounting central: no
Suitable for intermediate installation: no
Suitable for distribution board installation: yes
Version as main switch: yes
Design as safety switch: no
Motor drive optional: no
Lockable: yes
Design as reversing switch: no
Rated short-time withstand current Icw: 2 kA
Color of the actuating element: gray
Rated operating voltage: 220 to 690 V
Rated continuous current at AC-21, 400 V: 125 A
Number of switches: 1
Rated continuous current at AC-23, 400 V: 125 A
Protection class (NEMA): other

Characteristics

ManufacturerHAGER
HANHCA125H
GTIN3250613136635
Connection type main circuitScrew connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceYes
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementGag
Rated operational power at AC-23, 400 V123kW
Rated operating voltage220 to 690 V
Rated continuous current Iu125A
Rated continuous current at AC-21, 400 V125A
Rated continuous current at AC-23, 400 V125A
Rated short-time withstand current Icw2kA
Color of the actuatorGray
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Protection class (IP), frontIP40
Protection class (NEMA)Other
Voltage release optionalYes
LockableYes
