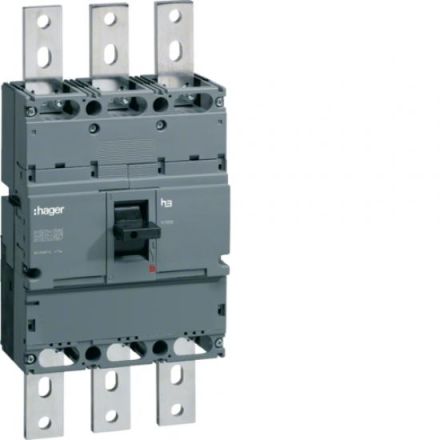

Hager HCE800H load disconnector h1000 3-pole 800A

In stock

SKU: 305107

Price on request

€1,262.04

€0

Overview

Load-break switch, size h1000, 3-pole, 800A. The load-break switch in accordance with DIN EN 60947-3, size h1000, is used to switch electrical systems and networks. The load-break switch separates the incoming side from the outgoing side in electrical systems. Mounted on a mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, triggered = middle position). The switches have a mechanical test button. The function of the circuit breakers can be expanded using various accessories. Including phase barriers and connection lugs.

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	360 kW
Rated continuous current Iu:	800 A
Max. Rated operating voltage Ue at AC:	690 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Cable clamp
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Toggle
Suitable for floor mounting:	yes
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Design as safety switch:	yes
Motor drive optional:	yes
Lockable:	yes
Design as reversing switch:	no
Rated short-time withstand current Icw:	10 kA
Color of the actuating element:	black
Rated operating voltage:	220 to 690 V
Switching capacity at 400 V:	526 kW
Rated continuous current at AC-21, 400 V:	800 A
Number of switches:	1
Protection class (NEMA):	other
