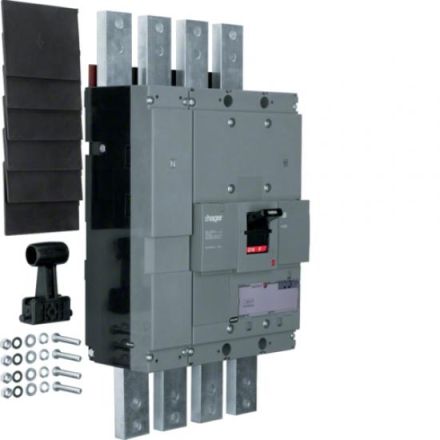

Hager HCF991H load disconnector h1600 4-pole 1600A

Hager HCF991H load disconnector h1600 4-pole 1600A

In stock

SKU: 308751

Price on request

€2,621.37

€0

Overview

Load-break switch, size h1600, 4-pole, 1600A. The load-break switch in accordance with DIN EN 60947-3, size h1600, is used to switch electrical systems and networks. The load-break switch separates the incoming side from the outgoing side in electrical systems. Mounted on a mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, tripped = middle position). The switches have a mechanical test button. The function of the circuit breakers can be expanded using various accessories. Including phase barriers and connection lugs.

Property	Value
Number of poles:	4
Rated operating power at AC-23, 400 V:	720 kW
Rated continuous current Iu:	1600 A
Max. Rated operating voltage Ue at AC:	690 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP40
Connection type main circuit:	Cable clamp
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Toggle
Suitable for floor mounting:	yes
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	yes
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Design as safety switch:	yes
Motor drive optional:	yes
Lockable:	yes
Design as reversing switch:	no
Rated short-time withstand current Icw:	20 kA
Color of the actuating element:	black
Rated operating voltage:	220 to 690 V
Switching capacity at 400 V:	1053 kW
Rated continuous current at AC-21, 400 V:	1600 A
Number of switches:	1
Protection class (NEMA):	other
