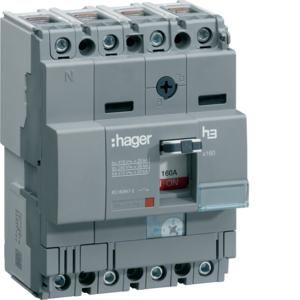

Hager HHA126H circuit breaker 160 4P 25kA 125A

In stock

SKU: 157424

Price on request

€641.82

€0

Overview

Circuit breaker h3 x160 TM ADJ 4P4D N0-100% 125A 25kA CTC. Circuit breaker according to DIN EN 60947-2 size x160, with thermal (adjustable) and magnetic (fixed) tripping to protect electrical systems and networks. Mounting on top hat rail or mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, tripped = middle position). Box terminals for Cu cables are included as standard. The switches have a mechanical test button. The function of the circuit breaker can be expanded using various accessories.

Property	Value
Rated continuous current Iu:	125 A
Connection type main circuit:	Screw connection
Number of poles:	4
Device design:	Built-in device, fixed installation technology
Position of the connection for main circuit:	front
Protection class (IP):	IP40
Overload release current setting:	80 to 125 A
Setting range of the instantaneous short-circuit release:	1500 A
Rated voltage:	220 to 415 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	25 kA
Suitable for DIN rail mounting:	yes
Design of the actuating element:	toggle
Integrated Earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	no
With trip detector:	yes
Complete device with protection unit:	yes
DIN rail mounting optional:	no
