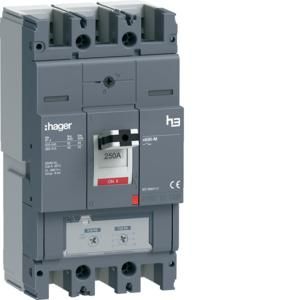

HABHMJ250DR h3 x630 TM ADJ 3P3D 250A 50kA
HANHMJ250DR
GTIN3250613199296
Connection type main circuitScrew connection
Design of the actuating elementGag
Rated continuous current Iu250A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz50kA
Rated voltage220 to 415 V
Setting range of the instantaneous short-circuit release1250 to 2500 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalNo
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorYes
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Position of the connection for main circuitIn front
IP protection)IP40
Overload release current setting160 to 250 A
