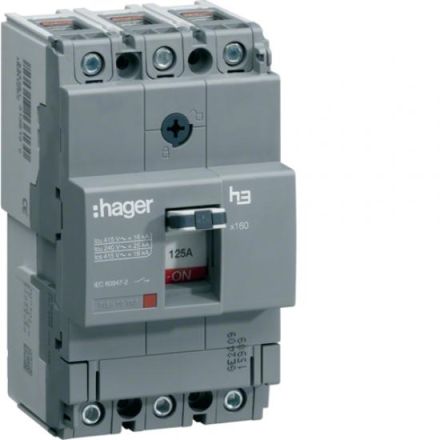

Circuit breaker h3 x160 TM ADJ 3P3D 63A 40kA CTC. Circuit breaker according to DIN EN 60947-2 size x160, with thermal (adjustable) and magnetic (fixed) tripping to protect electrical systems and networks. Installation on top hat rail or mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, tripped = middle position). Box terminals for Cu cables are included as standard. The switches have a mechanical test button. The function of the circuit breaker can be expanded using various accessories.
| Property | Value |
| Rated continuous current Iu: | 63 A |
| Connection type main circuit: | Screw connection |
| Number of poles: | 3 |
| Device design: | Built-in device, fixed installation technology |
| Position of the connection for main circuit: | front |
| Protection class (IP): | IP40 |
| Overload release Current setting: | 40 to 63 A |
| Setting range of the instantaneous short-circuit release: | 1000 A |
| Rated voltage: | 220 to 415 V |
| Rated short-circuit breaking current Icu at 400 V, 50 Hz: | 40 kA |
| Suitable for DIN rail mounting: | yes |
| Design of the actuating element: | toggle |
| Integrated earth fault protection: | no |
| Integrated motor drive: | no |
| Optional motor drive: | no |
| With trip detector: | yes |
| Complete device with protection unit: | yes |
| Optional DIN rail mounting: | no |
