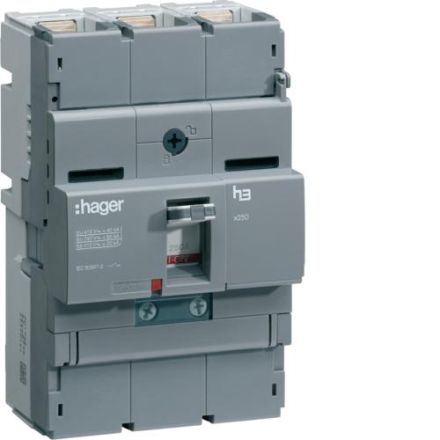

Hager HNB100H circuit breaker x250 3-pole 40kA 100A TM

Hager HNB100H circuit breaker x250 3-pole 40kA 100A TM

In stock

SKU: 305180

Price on request

€556.30

€0

Overview

Circuit breaker size x250 3-pole 40kA 100A TM. Circuit breaker according to DIN EN 60947-2 size x250, with thermal (adjustable) and magnetic (adjustable) release to protect electrical systems and networks. Mounting on mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, tripped = middle position). The switches have a mechanical test button. The function of the circuit breaker can be expanded using various accessories. Including phase separators.

Property	Value
Rated continuous current Iu:	100 A
Type of connection main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP40
Overload release Current setting:	63 to 100 A
Setting range of the instantaneous short-circuit release:	600 to 1300 A
Rated voltage:	220 to 415 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	40 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle
Integrated earth fault protection:	no
Integrated motor drive:	no
Optional motor drive:	yes
With trip detector:	no
Complete device with protection unit:	yes
Optional DIN rail mounting:	yes
