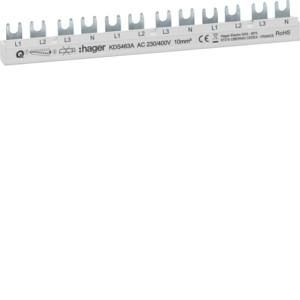

Hager KDS463A 12 Mod. 63A L1L2L3N phase rail

Hager KDS463A 12 Mod. 63A L1L2L3N phase rail

In stock

SKU: 832121

Price on request

€16.96

€0

Into a basketIn the basketGo

Overview

Phase rail 12 modules 63A L1L2L3N-L1L2L3N-L1L2L3N QuickBusbar. Compact horizontal phase rails. Maximum contact protection and safety thanks to permanently mounted side panels for insulating the copper rails.

Property	Value
Number of poles:	4
Number of phases:	3
Length:	215 mm
Cross section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	3
Suitable for devices with N conductor:	yes
Pitch dimension:	17.8 mm
Suitable for devices with auxiliary switch:	no
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices3

Pitch dimension17.8 mm

Rated surge voltage4 kV

HABKDS463A 12 Mod. 63A L1L2L3N

Manufacturer

HANKDS463A

GTIN3250613710040

Number of phases3

Design of the electrical connectionFork

Rated continuous current Iu63 A

IsolatedYes

Length215 mm

Max. rated operating voltage Ue400V

Number of poles4

Cross-section10 mm²
