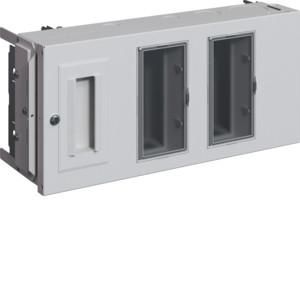

Hager KEB733P1 unibarM size 3 free assembly tap-off box

In stock
SKU: 923661
€333.80
Into a basketIn the basketGo

Overview

unibar M, tap-off box, size 3, empty box for free assembly. Tap-off box for installation of protective devices for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Tap-off box consisting of sheet steel casing (galvanized and painted) and fitted protective devices.

Property Value
Number of poles: 5
Number of conductors (without earth): 5
Color: gray
RAL number: 7035
Rated current at AC 50 Hz: 125 A
Rated voltage at AC 50 Hz: 690 V
Phase selection: no
With locking: yes
Outlet type: Cable entry
Protection class (IP): IP54
Protection: other
Length: 431 mm
Width: 214 mm
Height: 101 mm

Characteristics

Number of conductors (excluding earth)5
HABUnibarM size 3 free assembly
ManufacturerHAGER
HANKEB733P1
GTIN3250619846910
Width214 mm
ColorGray
Height101 mm
Length431 mm
Number of poles5
RAL number7035
IP protection)IP54
Hager KEB733P1 unibarM size 3 free assembly tap-off box
Hager KEB733P1 unibarM size 3 free assembly tap-off box
