Hager KEB754B1 unibarM size 4 NH1 fuse 4P 250A tap-off box

In stock

SKU: 923666

Price on request

€2,087.12

€0

Overview

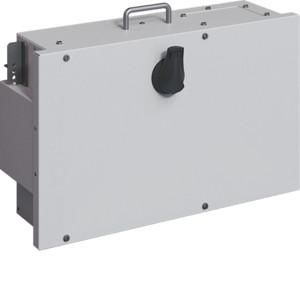

unibar M, tap-off box, size 4, 1x NH1 load carrier with fuse 4P 250A. Tap-off box for the installation of protective devices for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Outlet box consisting of sheet steel casing (galvanized and painted) and fitted protective devices.

Property	Value
Number of poles:	5
Number of conductors (without earth):	5
Color:	gray
RAL number:	7035
Rated current at AC 50 Hz:	250 A
Rated voltage at AC 50 Hz:	0 to 400 V
Phase selection:	no
With locking:	yes
Outlet type:	Cable entry
Protection class (IP):	IP54
Protection:	NH fuse
Length:	725 mm
Width:	494 mm
Height:	244 mm
