Hager KEB772E1 unibarM size 2 LSS C/4P 63A CEE 5P outlet box

In stock

SKU: 923646

Price on request

€751.46

€0

Overview

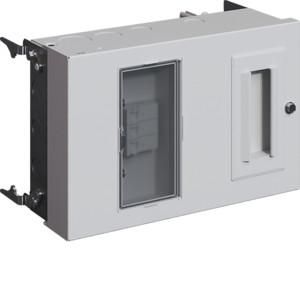

unibar M, tap-off box, size 2, 1x circuit breaker C/4P 63A, 1x CEE socket 5P. Tap-off box for installing protective devices for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Outlet box consisting of sheet steel casing (galvanized and painted) and fitted protective devices.

Property	Value
Number of poles:	5
Number of conductors (without earth):	5
Color:	gray
RAL number:	7035
Rated current at AC 50 Hz:	63 A
Rated voltage at AC 50 Hz:	0 to 400 V
Number of CEE sockets:	1
Phase selection:	no
With locking:	yes
Outlet type:	Cable entry
Protection class (IP):	IP54
Protection:	Circuit breaker
Length:	320 mm
Width:	205 mm
Height:	187 mm
