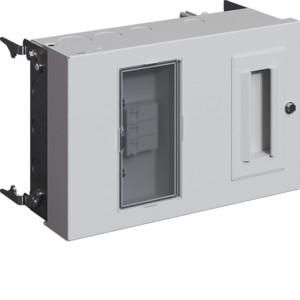

Hager KEB772F1 unibarM size 2 LSS C/3P 32A CEE 5P tap-off box

In stock

SKU: 923644

Price on request

€397.68

€0

Overview

unibar M, tap-off box, size 2, 1x circuit breaker C/3P 32A, 1x CEE socket 5P. Tap-off box for installing protective devices for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Outlet box consisting of sheet steel casing (galvanized and painted) and fitted protective devices.

Property	Value
Number of poles:	5
Number of conductors (without earth):	5
Color:	gray
RAL number:	7035
Rated current at AC 50 Hz:	32 A
Rated voltage at AC 50 Hz:	0 to 400 V
Number of CEE sockets:	1
Phase selection:	no
With locking:	yes
Outlet type:	Cable entry
Protection class (IP):	IP54
Protection:	Circuit breaker
Length:	320 mm
Width:	303 mm
Height:	110 mm
