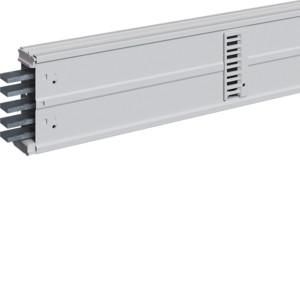

Hager KEM31S00S2LMF unibarM 160A L:1,26-2,24m with 4-8 AS optional length

In stock
SKU: 923869
€589.70
Into a basketIn the basketGo

Overview

unibar M, 160A, optional length 1, 26.2, 24m with 4-8 outlet points. Straight rail element in optional length with outlet points, rail connection via terminal block with integrated expansion compensation for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Rail element consisting of a 5-pole busbar system made of aluminum (nickel-plated and tin-plated), housing made of sheet steel (galvanized and painted), outlet points on both sides right/left at a distance of 0.5 m and on both sides right/left offset from each other at a distance of 0.25 m. Supplied ready for connection with all connecting parts. Note: Optionally, a fire barrier for wall or ceiling penetration according to DIN 4102 is installed for fire resistance class S90 or S120 according to DIN 4102-9 (EI90 or EI120 according to EN 13501). If required, can be implemented with functional integrity classes E60 or E90 in accordance with DIN 4102-12.

Property Value
Rated voltage at AC 50 Hz: 690 V
RAL number: 7035
Color: gray
Number of outlets: 8
Number of poles: 4
Rated current at AC 50 Hz: 160 A
Design: Single
Number of conductors (without earth): 5
Flexible: no
Protection class (IP): IP55
Width: 167 mm
Height: 68 mm
Length: 2240 mm

Characteristics

Number of conductors (excluding earth)5
HABUnibarM 160A L:1.26-2.24m with 4-8 AS
ManufacturerHAGER
HANKEM31S00S2LMF
GTIN3250611140023
VersionSingles
Width167 mm
ColorGray
FlexibleNo
Height68 mm
Length2240 mm
Number of poles4
RAL number7035
IP protection)IP55
