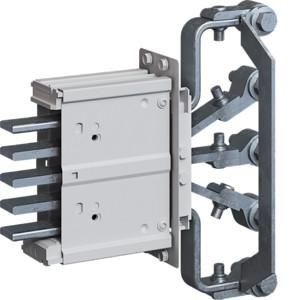

Hager KEM32S03N1LMF unibarM 250A for switchgear combination connector

In stock
SKU: 923686
€242.14
Into a basketIn the basketGo

Overview

unibar M, 250A, connection piece for switchgear assembly. Tap-off box for the installation of protective devices for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Tap-off box consisting of sheet steel casing (galvanized and painted) and fitted protective devices.

Property Value
Rated voltage at AC 50 Hz: 690 V
Rated current at AC 50 Hz: 250 A
Color: gray
RAL number: 7035
Design: Single
Feed-in point: End
Number of poles: 5
Protection class (IP): IP55
Width: 158 mm
Height: 286 mm
Length: 121 mm

Characteristics

HABUnibarM 250A for switchgear combination
ManufacturerHAGER
HANKEM32S03N1LMF
GTIN3250611140290
VersionSingles
Width158 mm
ColorGray
Height286 mm
Length121 mm
Number of poles5
RAL number7035
IP protection)IP55
