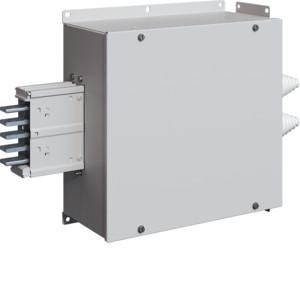

Hager KEM34S52Z0LMF unibarM 400A with cable compartment and grommet cable end feed

In stock
SKU: 923730
€747.93
Into a basketIn the basketGo

Overview

unibar M, 400A, cable end feed with cable compartment and grommet (multi-conductor cable). Cable end feed box without terminal block for installation on a 5-pole busbar system for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Feed box consisting of sheet steel box (galvanized and painted), cable feed-through grommets and connection bolts. A busbar connection is built into the feed box with the option of connecting cables. Note: The position of the PE connection cable can be changed.

Property Value
Rated voltage at AC 50 Hz: 690 V
Rated current at AC 50 Hz: 400 A
Color: gray
RAL number: 7035
Design: Single
Feed-in point: End
Number of poles: 5
Protection class (IP): IP55
Width: 440 mm
Height: 200 mm
Length: 852 mm

Characteristics

HABUnibarM 400A with cable compartment and grommet
ManufacturerHAGER
HANKEM34S52Z0LMF
GTIN3250611140917
VersionSingles
Width440 mm
ColorGray
Height200 mm
Length852 mm
Number of poles5
RAL number7035
IP protection)IP55
Hager KEM34S52Z0LMF unibarM 400A with cable compartment and grommet cable end feed
Hager KEM34S52Z0LMF unibarM 400A with cable compartment and grommet cable end feed
€747.93
Into a basketIn the basketGo
