Hager KEM34S53Z0LMF unibarM 400A with cable compartment and plate cable end feed

In stock
SKU: 923729
€747.93
Into a basketIn the basketGo

Overview

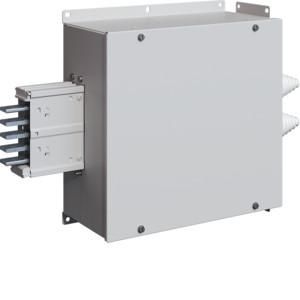

unibar M, 400A, cable end feeder with cable compartment and entry plate (single-core cable). Cable end feeder box without terminal block for installation on a 5-pole busbar system for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Feeder box consisting of sheet steel box (galvanized and painted), cable bushings and connection bolts. A busbar connection is built into the feeder box with the option of connecting cables. Note: The position of the PE connection cable can be changed.

Property Value
Rated voltage at AC 50 Hz: 690 V
Rated current at AC 50 Hz: 400 A
Color: gray
RAL number: 7035
Design: Single
Feed-in point: End
Number of poles: 5
Protection class (IP): IP55
Width: 440 mm
Height: 200 mm
Length: 852 mm

Characteristics

HABUnibarM 400A with cable compartment and plate
ManufacturerHAGER
HANKEM34S53Z0LMF
GTIN3250611140924
VersionSingles
Width440 mm
ColorGray
Height200 mm
Length852 mm
Number of poles5
RAL number7035
IP protection)IP55
