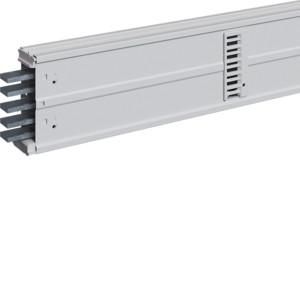

unibar M, 630A, optional length 1, 26.2, 24m with 4-8 outlet points. Straight rail element in optional length with outlet points, rail connection via terminal block with integrated expansion compensation for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. Rail element consisting of a 5-pole busbar system made of aluminum (nickel-plated and tin-plated), housing made of sheet steel (galvanized and painted), outlet points on both sides right/left at a distance of 0.5 m and on both sides right/left offset from each other at a distance of 0.25 m. Supplied ready for connection with all connecting parts. Note: Optionally, a fire barrier for wall or ceiling penetration according to DIN 4102 is installed for fire resistance class S90 or S120 according to DIN 4102-9 (EI90 or EI120 according to EN 13501). If required, can be implemented with functional integrity classes E60 or E90 in accordance with DIN 4102-12.
