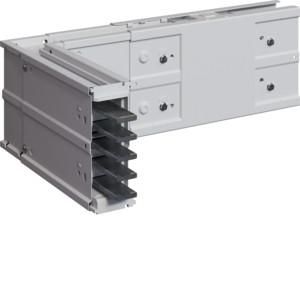

unibar M, 1000A, L-element. vertical, 90° downwards, selection Y: 0, 36.1, 25m. Rail element as L-shaped part with selection angle, rail connection via terminal block with integrated expansion compensation for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. L-shaped part consisting of a 5-pole busbar system made of aluminum (nickel-plated and tin-plated) and housing made of sheet steel (galvanized and painted). Delivered ready for connection with all connecting parts. Note: Optionally, a fire barrier for wall or ceiling feed-through in accordance with DIN 4102 is installed for fire resistance class S90 or S120 in accordance with DIN 4102-9 (EI90 or EI120 in accordance with EN 13501). If required, can be implemented with functional integrity classes E60 or E90 in accordance with DIN 4102-12.
