Hager LT250 NH2-disconnector M 10 3x400A

In stock
SKU: 157884
€333.49
Into a basketIn the basketGo

Overview

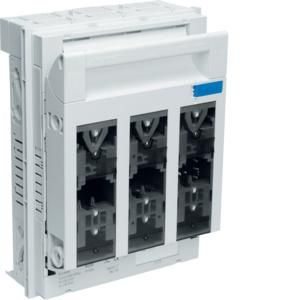

Fuse switch disconnector LT NH2 400A for mounting plate, screw connection M10. NH2 fuse switch disconnector for mounting plate or top hat rail mounting according to DIN EN 60947-3 (VDE 0660-107) and suitable for NH fuse links according to DIN 43620/1. Consisting of a 3-pole switch base and sealable handle insert, touch protection on the handle, with sliding transparent window for voltage testing, all-pole switching, for mounting on a top-hat rail or mounting plate, outlet at the top or bottom, without additional cover.

Property Value
Housing height: 308 mm
Rated operating current Ie: 400 A
Size of the fuse links: NH2
Rated insulation voltage Ui: 1000 V
Degree of protection (IP): IP3X
Equipment of the fuse switch housing: with fuse switch
Number of poles: 3
With fuse monitoring: no
Max. rated operating voltage Ue at AC: 690 V
Degree of protection (NEMA): 1

Characteristics

Rated operating current Ie400 A
ManufacturerHAGER
HANLT250
GTIN3250614202506
Rated insulation voltage Ui1000V
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Number of poles3
IP protection)IP3X
Protection class (NEMA)1
