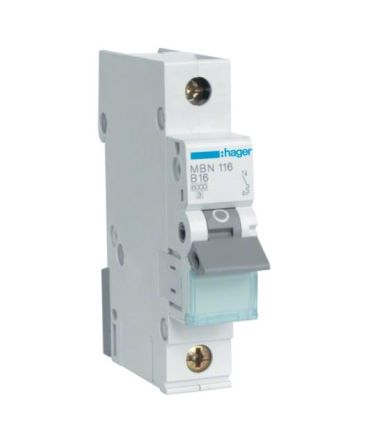

Hager MBN116 circuit breaker 1-pole B16A 6kA 1M

In stock
SKU: 157583
€2.88
Into a basketIn the basketGo

Overview

Miniature circuit breaker 1-pole 6kA B characteristic 16A 1 module

Miniature circuit breaker in accordance with DIN0641 part 11/8.92, contact protection IP2x in accordance with DIN0106 part
100 with symbol. LS with time-delayed thermal release for overload protection and
electromagnetic release for short-circuit protection. Suitable for the subsequent installation of
additional devices. Labelling option directly on the device and individual removal from the
phase rail assembly by unlocking the quick-release top hat rail fastening.

Technical features

Rated operating voltage Ue 230/400 V
Rated current 16 A
Trigger characteristic B
Rated breaking capacity 6 kA
Number of poles 1 P
Insulation voltage 500 V
Number of modules 1
Frequency 50/60 Hz
Connection type screw technology
Torque 2.8Nm
Total power loss under rated current 2.44 W
Device service life, electrical switching cycles 4000
Device service life, mechanical switching cycles 20000

Off Solving characteristic:
Property Value
B
Rated current: 16 A
Rated voltage: 400 V
Voltage type: AC
Frequency: 50 to 60 Hz
Width in pitch units: 1
Number of poles (total): 1
Energy limitation class: 3
Additional equipment possible: no
Overvoltage category: 3
Installation depth: 70 mm
Protection class (IP): IP20
Rated switching capacity Icn according to EN 60898 at 230 V: 6 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Pollution level: 2
Switching neutral conductor: no
Number of protected poles: 1
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Ambient temperature during operation: -25 to 70 °C
Connectable conductor cross-section, stranded: 1 to 25 mm²
Connectable conductor cross-section, single-wire: 1 to 35 mm²

Characteristics

ManufacturerHAGER
HANMBN116
GTIN3250614310096
Connectable conductor cross-section solid1 to 35 mm²
Connectable conductor cross-section stranded1 to 25 mm²
Number of protected poles1
Trigger characteristicsB
Rated insulation voltage Ui500V
Rated switching capacity Icn according to EN 60898 at 230 V6kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V6kA
Rated voltage400V
Rated impulse withstand voltage Uimp4kV
Rated current16A
Width in pitch units1
Installation depth70 mm
Energy limitation class3
Frequency50 to 60 Hz
Switching neutral conductorNo
Number of poles (total)1
IP protection)IP20
Voltage typeAC
Ambient temperature during operation-25 to 70 °C
Degree of contamination2
Additional equipment possibleNo
Overvoltage category3
