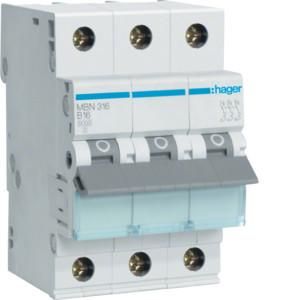

Hager MBN316 circuit breaker 3-pole B16A 6kA

In stock

SKU: 157678

Price on request

€16.09

€0

Overview

Circuit breaker 3-pole 6kA B characteristic 16A 3 modules. Circuit breaker according to DIN0641 part 11/8.92, contact protection IP2x according to DIN0106 part 100 with symbol. Circuit breaker with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device and individual removal from the phase rail assembly by unlocking the DIN rail quick fastening.

Property	Value
Triggering characteristic:	B
Rated current:	16 A
Rated voltage:	400 V
Voltage type:	AC
Frequency:	50 to 60 Hz
Width in Division units:	3
Number of poles (total):	3
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	10 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	6 kA
Pollution level:	2
Switching neutral conductor:	no
Number of protected poles:	3
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 70 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section single-wire:	1 to 35 mm²
