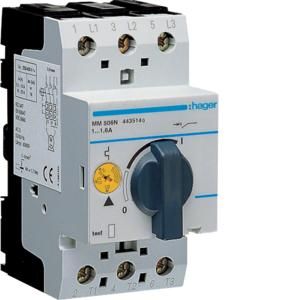

Hager MM506N motor protection switch 1, 0-1, 6A 230/400V

In stock

SKU: 157840

Price on request

€65.48

€0

Overview

Motor protection switch size 1, 1.0-1.6A 2.5M. Motor protection switch according to 0660 and 0113, with phase failure sensitivity, adjustable overload release and magnetic short-circuit release. Thermomagnetic switch with adjustable bimetal relay, auxiliary contacts and undervoltage release can be attached.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	0.25 kW
Rated operating power at AC-3, 400 V:	0.55 kW
Rated continuous current Iu:	1.6 A
Rated short-circuit breaking current Icu at 400 V, AC:	150 kA
Overload release current setting:	1 to 1.6 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Main circuit connection type:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	19.8 to 29.8 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	140 mm
Depth:	75 mm
Design of the actuating element:	Rotary knob
With thermal Protection:	yes
