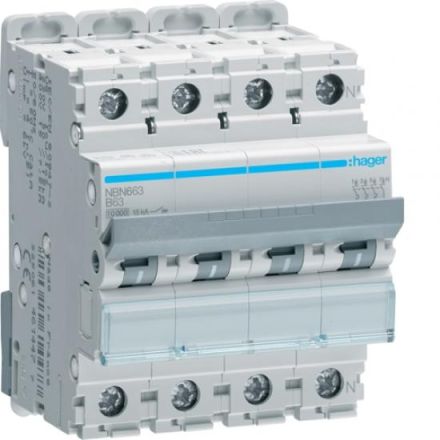

Hager NBN663 miniature circuit breaker 3-pole +N B63A 10kA 4M

Hager NBN663 miniature circuit breaker 3-pole +N B63A 10kA 4M

In stock

SKU: 305438

Price on request

€206.08

€0

Overview

Miniature circuit breaker 3P+N 10kA B characteristic 63A 4 modules. Miniature circuit breaker according to EN 60898 IEC 60-947-2 contact protection IP2x according to DIN0106 Part 100 with symbol. LS with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional devices. Labeling option directly on the device and individual removal from the phase rail assembly by unlocking the quick-release top hat rail fastening.

Property	Value
Triggering characteristic:	B
Rated current:	63 A
Rated voltage:	400 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	4
Number of poles (total):	4
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	10 kA
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	30 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	15 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	10 kA
Pollution level:	2
Switching neutral conductor:	yes
Number of protected poles:	3
Rated insulation voltage Ui:	500 V
Rated impulse withstand voltage Uimp:	6 kV
Ambient temperature during operation:	-25 to 70 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, single-wire:	1 to 35 mm²
