circuit breaker

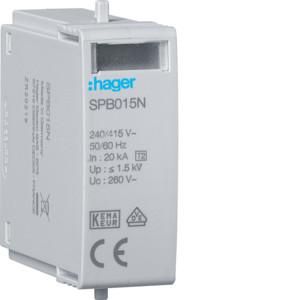

Hager SPB015N T2 N-PE 260V max 40kA Up 1.5kV plug-in module

Hager SPB015N T2 N-PE 260V max 40kA Up 1.5kV plug-in module

In stock

SKU: 770330

Price on request

€59.93

€0

Into a basketIn the basketGo

Overview

SPB015N T2 N-PE 260V max 40kA Up 1.5kV plug-in module manufacturer article number: SPB015N, manufacturer article name: SPB015N T2 N-PE 260V max 40kA Up 1.5kV

Property	Value
Protection level:	1.5 kV
Nominal discharge current (8/20):	20 kA
Highest continuous voltage AC:	275 V
Nominal voltage AC:	240 V
Protection level LN:	1.5 kV
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Protection level N-PE:	1.35 kV
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type other:	no
Short-circuit strength (Isccr):	25 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Max. conductor cross-section flexible (fine-stranded)25 mm²

Protection level1.5 kV

Test class type 2Yes

Short circuit strength (Isccr)25 kA

Protection level L-N1.5 kV

Protection level N-PE1.35 kV

Integrated backup fuseNo

HABSPB015N T2 N-PE 260V max 40kA Up 1.5kV

Manufacturer

HANSPB015N

GTIN3250615514868

Size1 TE

Highest continuous voltage AC275V

Mounting typeDIN rail TH35

Nominal discharge current (8/20)20kA

Nominal voltage AC240V

IP protection)IP20

Signaling on the deviceOptical

Hager SPB015N T2 N-PE 260V max 40kA Up 1.5kV plug-in module

Hager SPB015N T2 N-PE 260V max 40kA Up 1.5kV plug-in module

Price on request

€59.93

€0

Into a basketIn the basketGo
