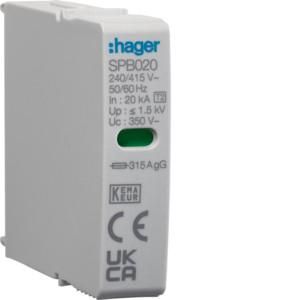

Hager SPB020 1P T2 LN SPB420 plug-in module

Hager SPB020 1P T2 LN SPB420 plug-in module

In stock

SKU: 923849

Price on request

€59.35

€0

Into a basketIn the basketGo

Overview

SPB020 1P T2 LN SPB420 plug-in module Manufacturer article number: SPB020, Manufacturer article name: 1P T2 LN SPB420

Property	Value
Protection level:	1.5 kV
Maximum continuous voltage AC:	275 V
Nominal voltage AC:	415 V
Protection level LN:	1.5 kV
Mounting type:	DIN rail TH35
Size:	1 TE
Signaling on the device:	optical
With remote signaling contact:	yes
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Protection level N-PE:	1.5 kV
Integrated backup fuse:	no
Protection class (IP):	IP20
Number of conductors (without earth):	1
Short-circuit strength (Isccr):	25 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Max. conductor cross-section flexible (fine-stranded)25 mm²

Protection level1.5 kV

With remote signaling contactYes

Number of conductors (excluding earth)1

Test class type 2Yes

Short circuit strength (Isccr)25 kA

Protection level L-N1.5 kV

Protection level N-PE1.5 kV

Integrated backup fuseNo

HAB1P T2 LN SPB420

Manufacturer

HANSPB020

GTIN3250615515278

Size1 TE

Highest continuous voltage AC275V

Mounting typeDIN rail TH35

Nominal voltage AC415V

IP protection)IP20

Signaling on the deviceOptical
