Max. conductor cross-section rigid (single/multi-wire)35 mm²
Max. conductor cross-section flexible (fine-stranded)25 mm²
Protection level1.9 kV
With remote signaling contactNo
Highest continuous voltage DC585 V
Max. discharge current (8/20)40 kA
Test class type 2Yes
Nominal voltage DC1000 V
Short circuit strength (Isccr)2 kA
Protection level L-N1.9 kV
Network type DCYes
Protection level N-PE1.9 kV
Integrated backup fuseNo

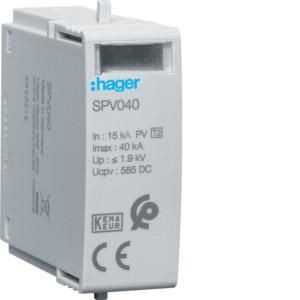

HABSPV040 T2 1P Photovoltaic +/- for SPV340
HANSPV040
GTIN3250615514950
Size1 TE
Highest continuous voltage AC585V
Mounting typeOn base element
Nominal discharge current (8/20)15kA
Nominal voltage AC1000V
IP protection)IP20
Signaling on the deviceOptical
