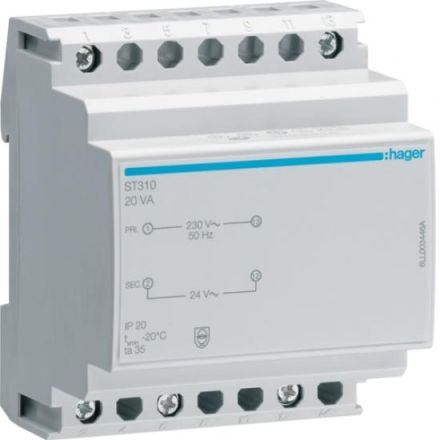

Hager ST310 230V/24V 20VA 4PLE safety transformer

In stock

SKU: 524899

Price on request

€60.77

€0

Overview

Safety transformer 230V/24V, 20VA, 4PLE. Safety transformer with separate primary and secondary windings. Protection against short circuits or overloads is provided by an integrated thermal switch on the primary side.

Property	Value
Type of transformer:	Safety transformer
Primary voltage:	230 V
Width in pitch units:	4
Secondary voltage 1:	24 V
Secondary voltage 2:	24 V
Secondary current 1:	0.834 A
Suitable for flush-mounted:	no
Short-circuit proof:	yes
Suitable for surface-mounted:	yes
Length:	85 mm
Width:	70 mm
Height:	58 mm
Max. Output power:	20 W
Suitable for series installation:	yes
Temperature protection:	yes
Max. output current:	1 A
Max. power loss:	2 W
With on/off switch:	no
