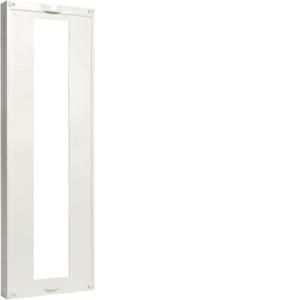

Hager UC51L83 univ.N 1 bar NH1-3 750x250mm kit

In stock
SKU: 840538
€215.37
Into a basketIn the basketGo

Overview

Kit, universN, 750x250mm, for 1 NH1-3 bar on busbar system 185mm. Distribution board interior installation system univers N kits according to DIN EN 61439-1+2 or 0660-600-1+2, internal grid according to DIN 43870. For setting up a type-tested switchgear combination up to 2500A, rated voltage 3AC-690 V /50Hz. Sealable contact protection covers reinforced with gas pressure process as standard, each with four quick-release bolts and fastening towers.

Property Value
Rated operating current: 1600 A
Width: 250 mm
Suitable for load-break switches: no
Suitable for circuit breakers: no
Suitable for zero-voltage switches: no
Suitable for changeover switches: no
Height: 750 mm
Equipped with load-break switch: no
Equipped with circuit breaker: no
Equipped with zero-voltage switch: no
Equipped with changeover switch: no
Depth: 175 mm
With cover: yes
Plastic cover plate: yes
Number of poles: 3
Number of switches: 1
With distribution terminals: no

Characteristics

Rated operating current1600 A
HABUC51L83 univ.N 1 bar NH1-3 750x250mm
ManufacturerHAGER
HANUC51L83
GTIN3250616370821
Number of switches1
Width250 mm
Suitable for load break switchesNo
Suitable for circuit breakersNo
Height750 mm
With coverYes
Number of poles3
Depth175 mm
