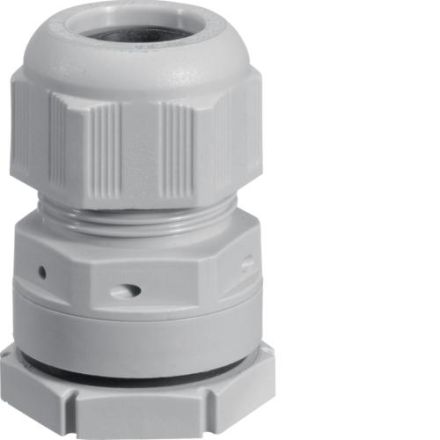

Hager VZ020D pressure compensation screw connection IP66 M20

In stock

SKU: 159128

Price on request

€13.66

€0

Overview

Pressure compensation screw connection, vector, IP66, M20

Property	Value
Wrench size:	27 mm
Nominal thread size metric/PG:	20
Suitable for cable diameters:	6 to 13 mm
Protection class (IP):	IP65
Operating temperature:	-25 to 40 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Design:	straight
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	27 mm
Impact resistant:	yes
Bending protection:	yes
RAL number:	7035
Material quality:	Polyamide (PA)
Fiberglass reinforced:	no
With lock nut:	yes
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested Version:	no
For Ex zone dust:	without
Snaps into opening:	no
For armored cables:	no
Shielded:	no
