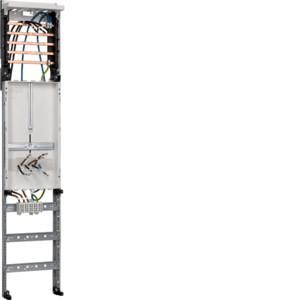

Hager ZAD811DHZ1 1xZF 1x3.HZ for ZAS BD45A/65A retrofit panel

Hager ZAD811DHZ1 1xZF 1x3.HZ for ZAS BD45A/65A retrofit panel

In stock

SKU: 875914

Price on request

€359.90

€0

Into a basketIn the basketGo

Overview

ZAD811DHZ1 1xZF 1x3.HZ for ZAS BD45A/65A retrofit panel Manufacturer article number: ZAD811DHZ1, Manufacturer article name: ZAD811DHZ1 1xZF 1x3.HZ for ZAS BD45A/65A

Property	Value
Height:	1200 mm
Width:	250 mm
Width in division units:	12
Design:	1-storey
Connection compartment:	300 mm
Number of meter spaces:	1
Number of distribution rows:	8
With wiring:	yes
With mounting plate:	no
Lower connection compartment:	with 5-pole busbar
Main switch rated current:	50 A
Color:	white
RAL number:	9010
Protection class (IP):	other

Characteristics

HABZAD811DHZ1 1xZF 1x3.HZ for ZAS BD45A/65A

Manufacturer

HANZAD811DHZ1

GTIN3250611075066

Connection room300 mm

Number of distribution rows8

Number of meter slots1

Version1-storey

Width250 mm

Width in pitch units12

Color

Main switch rated current50A

Height1200 mm

With mounting plateNo

With wiringYes

RAL number9010

IP protection)Other

Lower connection compartmentWith busbar 5-pole
