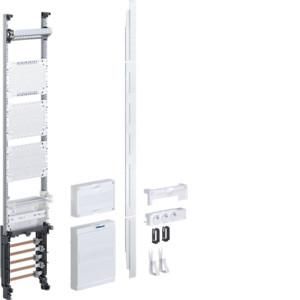

Installation kit, univ.Z, H=1350mm, for LM applications, SaS 300mm, RfZ 150mm, MM 900mm, 1-f. Installation kit for load management applications for installation in meter cabinet systems using tool-free quick assembly in accordance with DIN0603. Pre-assembled installation kit consisting of support frame with support rails, multimedia area, additional space for load manager (RfL) and NAR (network-side connection space). The NAR (HxW = 300x250 mm) is equipped with 5 busbars 12x5mm. The RfL (HxW = 150x250 mm) is constructed as a complete plastic housing. A plastic top-hat rail is integrated for mounting the load manager (series-mounted device, not included). The multimedia area for mounting the multimedia components for the load management application. Consists of an insulated, pre-assembled patch panel for 12 ports with labeling strips, 6 shielded data modules RJ45 Cat. 6 (500 MHz), 3-way protective contact sockets (rotatable 90 degrees) for cable connection via plug-in terminals, multimedia device holder for VDI components and cable retaining clips. Note: A cable must be connected from the patch panel to the equipotential bonding rail (functional equipotential bonding according to DIN EN 50310 -0800-2-310) (not included). Partitions from the multimedia field and other installation kits must be installed according to application (not included).
