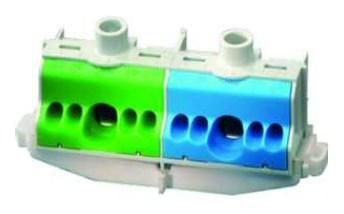

Hensel FC PN 10 connecting terminal

In stock

SKU: 480626

Price on request

€7.68

€0

Overview

FIXCONNECT PE and N terminal each PE/N 2 x 25 mm², 4 x 4 mm², Cu for mounting on a mounting rail.

Property	Value
Number of poles:	2
Color:	multicolored
Rated voltage:	690 V
Material of the insulating body:	Thermoplastic
Rated current In:	80 A
Operating temperature:	55 °C
Connection position:	side
Connectable conductor cross-section, single-wire:	1.5 to 25 mm²
Connectable conductor cross-section, multi-wire:	1.5 to 25 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	6 to 25 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	1.5 to 25 mm²
Mounting type:	DIN rail TH35
Width/grid dimension:	86 mm
Height with lowest mounting type:	43 mm
Length:	86 mm
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Plug connection
Number of terminal points per pole:	5
Flammability class of the insulating material according to UL 94:	other
End plate required:	no
