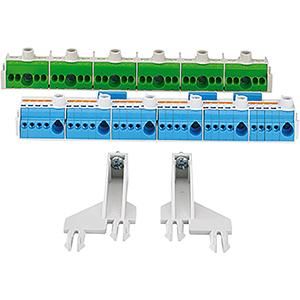

Hensel FC PN 60 NT FIXCONNECT PE terminal and N-isolating terminal

In stock

SKU: 480931

Price on request

€110

€0

Overview

FIXCONNECT NT terminal FC PN 60 NT, screw fastening, PE 6 x 25 mm² box terminals and 24 x 4 mm² plug-in terminals, N 6 x 25 mm² box terminals and 24 x 6 mm² Cu N-isolating terminals. N separable, for up to 4 different potentials. Can be used in HENSEL-Mi housings.

Property	Value
Number of poles:	2
Color:	multicolored
Rated voltage:	690 V
Material of the insulating body:	Thermoplastic
Rated current In:	75 A
Operating temperature:	40 °C
Connectable conductor cross-section, single-wire:	1.5 to 25 mm²
Connectable conductor cross-section, stranded:	1.5 to 25 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	1.5 to 16 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	1.5 to 25 mm²
Mounting type:	Direct mounting
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Plug connection
Number of terminals per pole:	30
Flammability class of the insulating material according to UL 94:	other
End plate required:	no
