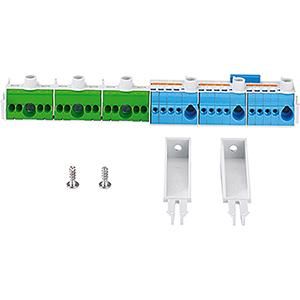

Hensel FP FC 24 NT ENYSTAR 2 rows 15 terminals PE and N terminal

In stock
SKU: 480920
€50.28
Into a basketIn the basketGo

Overview

PE and N terminals each PE/N 3 x 25 mm², 12 x 4 mm² PE and 12 x 6 mm² N for ENYSTAR housing. FIXCONNECT NT plug-in terminal technology for copper conductors with N-isolating terminals. N separable, up to 2 different potentials.

Property Value
Number of poles: 2
Color: multicolored
Rated voltage: 690 V
Material of the insulating body: Thermoplastic
Rated current In: 75 A
Operating temperature: 40 °C
Connectable conductor cross-section, single-wire: 1.5 to 25 mm²
Connectable conductor cross-section, stranded: 1.5 to 25 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule: 1.5 to 16 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule: 1.5 to 25 mm²
Mounting type: Direct mounting
Design of electrical connection 1: Screw connection
Design of electrical connection 2: Plug connection
Number of terminals per pole: 15
Flammability class of the insulating material according to UL 94: other
End plate required: no

Characteristics

HABFP FC 24 NT ENYSTAR 2 row 15 terminals
ManufacturerHensel
HANFP FC 24 NT
GTIN4012591130277
Connectable conductor cross-section solid1.5 to 25 mm²
Connectable conductor cross-section stranded1.5 to 25 mm²
Rated voltage690V
Rated current In75A
Operating temperatur40°C
Flammability class of the insulating material according to UL 94Other
Mounting typeDirect mounting
Number of poles2
Hensel FP FC 24 NT ENYSTAR 2 rows 15 terminals PE and N terminal
Hensel FP FC 24 NT ENYSTAR 2 rows 15 terminals PE and N terminal
