Hensel FP FC 51 NT ENYSTAR 2 row 40 terminals PE and N terminal

In stock

SKU: 480922

Price on request

€153.73

€0

Overview

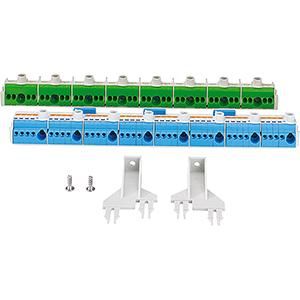

PE and N terminals each PE/N 8 x 25 mm², 32 x 4 mm² PE and 32 x 6 mm² N for ENYSTAR housing. FIXCONNECT NT plug-in terminal technology for copper conductors with N-isolating terminals. N separable, up to 4 different potentials.

Property	Value
Number of poles:	2
Color:	multicolored
Rated voltage:	690 V
Material of the insulating body:	Thermoplastic
Rated current In:	75 A
Operating temperature:	40 °C
Connectable conductor cross-section, single-wire:	1.5 to 25 mm²
Connectable conductor cross-section, stranded:	1.5 to 25 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	1.5 to 16 mm²
Connectable conductor cross-section, finely stranded without wire end ferrule:	1.5 to 4 mm²
Mounting type:	Direct mounting
Design of electrical connection 1:	Screw connection
Design of electrical connection 2:	Plug connection
Number of terminals per pole:	40
Flammability class of the insulating material according to UL 94:	other
End plate required:	no
