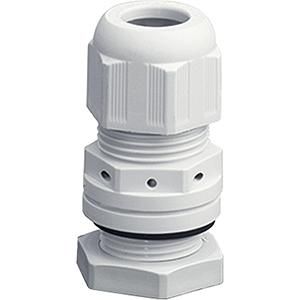

Hensel KBM40 M40 IP66/67 RAL7035 combi ventilation nozzle

In stock
SKU: 517814
€62.94
Into a basketIn the basketGo

Overview

Combination ventilation nozzle for M 40 knockouts and sealing range Ø 16-28 mm. To reduce condensation by equalizing pressure.

Property Value
Wrench size: 46 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 40
Suitable for cable diameters: 16 to 28 mm
Protection class (IP): IP67
Operating temperature: -25 to 70 °C
Halogen-free: yes
Thread length: 12 mm
Thread type: metric
Design: straight
Material: plastic
With strain relief: yes
Surface: untreated
Hexagon corner dimension: 51 mm
Type of seal: Sealing ring
Impact-resistant: yes
Bending protection: no
RAL number: 7035
Material quality: Polyamide (PA)
Fiberglass reinforced: no
With lock nut: yes
Multiple sealing insert: no
Flat cable gland: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-Zone Gas: without
For Ex-Zone Dust: without

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG40
Fiberglass reinforcedNo
Suitable for cable diameter16 to 28 mm
Wrench size46 mm
HABM40 IP66/67 RAL7035
Minimal order2 pcs
ManufacturerHensel
HANKBM40
GTIN4012591118619
VersionStraight
Operating temperature-25 to 70 °C
Thread typeMetric
Thread length12 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
SurfaceUntreated
RAL number7035
IP protection)IP67
MaterialPlastic
Material qualityPolyamide (PA)
Hensel KBM40 M40 IP66/67 RAL7035 combi ventilation nozzle
Hensel KBM40 M40 IP66/67 RAL7035 combi ventilation nozzle
€62.94
Into a basketIn the basketGo
