Hensel KV PC 9103 3TE circuit breaker housing

In stock
SKU: 480281
€28.80
Into a basketIn the basketGo

Overview

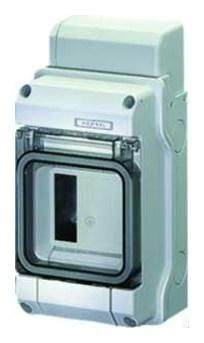

Small distributor made of high-quality thermoplastic (polycarbonate). For surface-mounted applications for unprotected installation outdoors or in buildings. Automated housing, with 3 division units, for installing devices with snap fastening on DIN rails. Cable entry is via metric knockouts. With transparent flap, cable entry panel and break-out device cut-out. Protection class IP 65.

Property Value
Width in pitch units: 3
Number of rows: 1
Height: 197 mm
Width: 102 mm
Depth: 92 mm
Protection class (IP): IP65
Color: gray
With lock: no
Transparent cover/door: yes
Housing material: plastic
RAL number: 7035
DIN rail: yes
Mounting option: yes
Installation depth: 72 mm
EMC version: no
With mounting plate: no
Type of cover: door
Cover design: closed
Inner depth: 79 mm

Characteristics

HABKV PC 9103 3TE
ManufacturerHensel
HANKV PC 9103
GTIN4012591118213
Cultivation optionYes
Number of rows1
Type of coverDoor
Cover designClosed
Width102 mm
Width in pitch units3
DIN railYes
EMC versionNo
Installation depth72 mm
ColorGray
Height197 mm
Internal depth79 mm
With mounting plateNo
With lockNo
RAL number7035
IP protection)IP65
Depth92 mm
Transparent lid/doorYes
Housing materialPlastic
