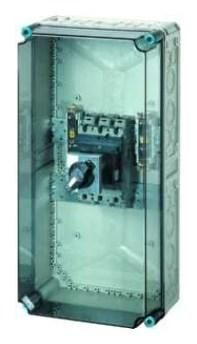

Hensel Mi 7431 160A circuit breaker housing

In stock
SKU: 480542
€1,279.67
Into a basketIn the basketGo

Overview

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall bushings with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with circuit breaker 160 A, 3-pole, according to IEC 60947-2. With PE and N terminals for copper conductors. With overload and short-circuit release. Handle of the circuit breaker can be locked. Cover locks for tool operation.

Property Value
Number of poles: 3
Rated current: 160 A
Breaking capacity according to IEC 947, lcu, 400 V: 36 kA
Rated voltage AC 50 Hz: 690 V
Suitable for series installation: no
Overload release: 160 A
With earth fault protection function: no
Height: 600 mm
Width: 300 mm
Depth: 262 mm

Characteristics

HABMi 7431 160A
ManufacturerHensel
HANMi 7431
GTIN4012591115359
Width300 mm
Suitable for series installationNo
Height600 mm
Rated current160A
Number of poles3
Depth262 mm
Hensel Mi 7431 160A circuit breaker housing
