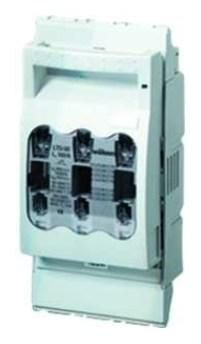

Hensel MS NH 00 NH00 fuse switch disconnector

In stock

SKU: 480210

Price on request

€98.19

€0

Overview

For mounting on busbars, busbar thickness 10 mm and center distance 60 mm, fuse size: NH 00, rated current: 125 A, 3-pole, rated voltage: AC 690 V, clamp terminal connection 1.5-70 mm, conductor material: Cu, busbar center distance: 60 mm, height: 216 mm, width: 105 mm.

Property	Value
Rated continuous current Iu:	125 A
Degree of protection (IP), front:	other
Number of poles:	3
Design as main switch:	no
Design of the actuating element:	cover handle
Connection type main circuit:	clamping bracket
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	no
Design as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	50 kA
Design as safety switch:	no
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH00
Position of the actuating element:	front
Integrated motor drive:	no
Optional motor drive:	no
