Hensel RK0203T 1.5-2.5qmm 3 terminals WKM terminal box

In stock
SKU: 480887
€11.02
Into a basketIn the basketGo

Overview

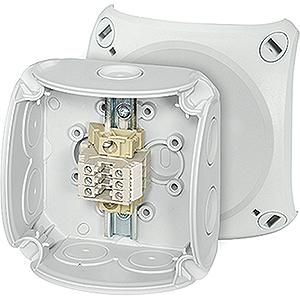

Cable junction box made of high-quality thermoplastic with terminal blocks for aluminum and copper conductors. For surface-mounted applications in buildings or protected outdoor installation. With external tabs for fastening and cover fastening via quick-release fasteners. With cover retaining strap. With 3 terminal blocks up to 2.5 mm. Cable entry via elastic sealing membranes in the housing walls and base. Subsequent use of cable glands possible by removing the sealing membrane.

Property Value
Width: 93 mm
Length: 93 mm
Depth: 62 mm
Color: grey
Protection class (IP): IP66
Number of entries: 7
Halogen-free: yes
Mounting type: Wall/ceiling mounting
Material: Plastic
Cover fastening: screwed
Sealable: yes
Can be arranged in rows: no
Shape: square
Max. Conductor cross-section: 2.5 mm²
Type of housing feedthrough: other
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Potting compound supplied: no
Potable: no
For Ex-Zone Dust: without
Surface: untreated
For pipe diameter: other
With shielding: no
Rated insulation voltage Ui: 500 V
Introduction from the rear: yes
Weatherproof: no
Cover design: other
Operating temperature: -25 to 40 °C

Characteristics

Explosion-tested versionNo
HABRK0203T 1.5-2.5qmm 3 terminals WKM
Minimal orderPcs
ManufacturerHensel
HANRK 0203 T
GTIN4012591125624
Cover designOther
Rated insulation voltage Ui500V
Width93 mm
Operating temperature-25 to 40 °C
ColorGray
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length93 mm
Mounting typeWall/ceiling mounting
SurfaceUntreated
IP protection)IP66
Depth62 mm
MaterialPlastic
