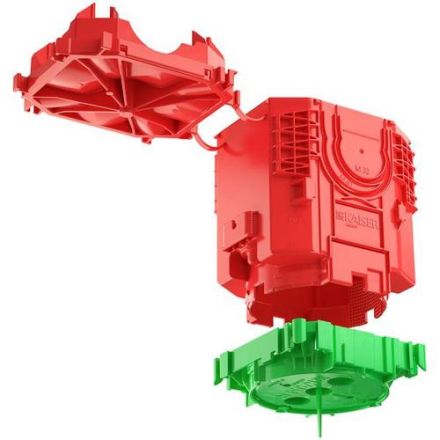

Kaiser 1260-11 B1 Prefix 2-part opening D:60mm concrete construction ceiling large pipe box

In stock

SKU: 707945

Price on request

€3.45

€0

Overview

1260-11 B1 Prefix 2-part opening D:60mm concrete construction ceiling large pipe box Manufacturer article number: 1260-11, Manufacturer article name: B1 Prefix 2-part opening D:60mm

Property	Value
With screws:	no
Depth:	110 mm
Length:	94 mm
Width:	75 mm
Material:	Plastic
Color:	red
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP3X
Shape:	other
Diameter:	60 mm
Mounting type:	Concrete construction
Number of entries:	3
Design:	Single
Design:	Junction box/case
With nail tabs:	no
Windproof:	no
Introduction from the rear:	yes
Can be coupled:	yes
Housing feed-through through sealing membrane:	no
Cover fastening:	other
Functional integrity:	without
For number of device inserts:	1
Fastening of the devices:	screws
For pipe diameter:	other
Pipe locking:	no
Equipment:	without
Light hook fastening:	yes
Socket:	without
With shielding:	no
Housing feed-through through knockout opening:	no
With rotating ring:	no
Special application:	other
Housing feed-through through pipe socket:	no
Housing feed-through through stepped membrane:	no
Pipe locking optional:	no
Cover design:	other
Transparent cover:	no
