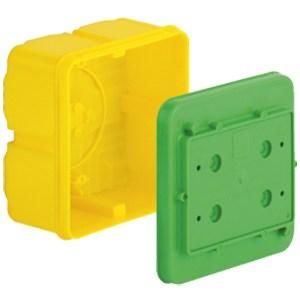

Kaiser 1295-02 128x128mm for in-situ concrete junction box, 1295-02

In stock

SKU: 494883

Price on request

€5.53

€0

Overview

Application area: For cable connections, Installation type: In-situ concrete, Length: 128 mm, Width: 128 mm, Depth: 80 mm

Property	Value
With screws:	no
Max. Conductor cross-section:	16 mm²
Depth:	80 mm
Length:	128 mm
Width:	128 mm
Material:	Plastic
Color:	green
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP3X
Shape:	square
Mounting type:	Concrete construction
Design:	Single
Design:	Junction box/case
With nail tabs:	no
Windproof:	no
Introduction from behind:	yes
Can be coupled:	no
Housing feedthrough through sealing membrane:	no
Functional integrity:	without
Fastening of the devices:	screws
For pipe diameter:	16 mm
Pipe locking:	no
Equipment:	without
Light hook fastening:	no
Socket:	without
With shielding:	no
Housing feedthrough through knockout opening:	no
With rotating ring:	no
Special application:	other
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	without
Transparent lid:	no
